Series 372 - 4 Flute Dowel Drills

TECHNICAL DETAILS: - Super-Strength Steel. - Cutter Portion Coated With Black Or Orange P.T.F.E. - HW Head With Precision Balanced Centre Point. - 2 HW Precision Ground Cutting Edges [Z2]. - Negtively Ground Spurs [V2]. - 4 Spiral Flutes. - Parallel Shank With Driving Flat And Length Adjusting Screw. APPLICATION: - Used On Boring Machines Equipped With Adaptors Or Chucks. - Used To Drill Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.

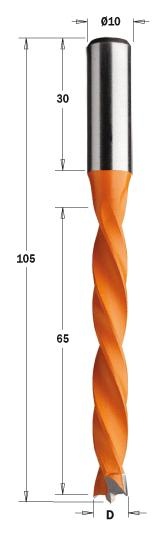

DIAMETER - MM	DRILL LENGTH - MM	OVERALL LENGTH - MM	SHANK - MM	TYPE	SKU
DIAMETER - MM: 5	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.050.11
DIAMETER - MM: 6	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.060.11
DIAMETER - MM: 7	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.070.11
DIAMETER - MM: 8	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.080.11
DIAMETER - MM: 10	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.100.11
DIAMETER - MM: 12	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 372.120.11
DIAMETER - MM: 5	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.050.12
DIAMETER - MM: 6	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.060.12
DIAMETER - MM: 7	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.070.12
DIAMETER - MM: 8	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.080.12
DIAMETER - MM: 10	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.100.12
DIAMETER - MM: 12	DRILL LENGTH - MM: 65	OVERALL LENGTH - MM: 105	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 372.120.12

TECHNICAL DETAILS:

- Super-Strength Steel.

- Cutter Portion Coated With Black Or Orange P.T.F.E.

- HW Head With Precision Balanced Centre Point.

- 2 HW Precision Ground Cutting Edges [Z2].

- Negtively Ground Spurs [V2].

- 4 Spiral Flutes.

- Parallel Shank With Driving Flat And Length Adjusting Screw.

APPLICATION:

- Used On Boring Machines Equipped With Adaptors Or Chucks.

- Used To Drill Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.
