Series 370

TECHINICAL DETAILS: - Super-Strength Steel. - Cutter Portion Coated With Orange Or Black P.T.F.E. - HW Head With Precision Balanced Centre Point. - 2 HW Precision Ground Cutting Edges [Z2]. - 2 Negatively Ground Spurs [V2]. - Parallel Shank With Driving Flat And Length Adjusting Screw. APPLICATION: - Ideal For Hinges. - Use On Boring Machines Equipped With Adaptors Or Chucks. Use For Drilling Accurate And Clean-Cut Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.

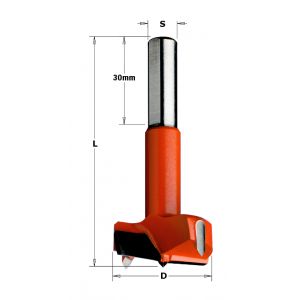

DIAMETER - MM	OVERALL LENGTH - MM	SHANK - MM	TYPE	SKU
DIAMETER - MM: 18	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 370.180.11
DIAMETER - MM: 18	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 370.180.12
DIAMETER - MM: 20	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 370.200.11
DIAMETER - MM: 20	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 370.200.12
DIAMETER - MM: 25	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 370.250.11
DIAMETER - MM: 25	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 370.250.12
DIAMETER - MM: 30	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 370.300.11
DIAMETER - MM: 30	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 370.300.12
DIAMETER - MM: 35	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: RIGHT-HAND ROTATION	SKU: 370.350.11
DIAMETER - MM: 35	OVERALL LENGTH - MM: 77	SHANK - MM: 10x30	TYPE: LEFT-HAND ROTATION	SKU: 370.350.12

TECHINICAL DETAILS:

- Super-Strength Steel.

- Cutter Portion Coated With Orange Or Black P.T.F.E.

- HW Head With Precision Balanced Centre Point.

- 2 HW Precision Ground Cutting Edges [Z2].

- 2 Negatively Ground Spurs [V2].

- Parallel Shank With Driving Flat And Length Adjusting Screw.

APPLICATION:

- Ideal For Hinges.

- Use On Boring Machines Equipped With Adaptors Or Chucks. Use For Drilling Accurate And Clean-Cut Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.
