Series 317

TECHNICAL DETAILS: - Super-Strength Steel. - Cutter Portion Coated With Orange Or Black P.T.F.E. - HW Head With Precision Balanced Centre Point. - 2 HW Precision Ground Cutting Edges [Z2]. - 2 Negatively Ground Spurs [V2]. - Parallel Shank With Driving Flat And Length Adjusting Screw. APPLICATION: - Ideal For Hinges. - Use On Boring Machines Equipped With Adaptors Or Chucks. - Use For Drilling Accurate And Clean-Cut Blind Holes In Solid Wood, Wood Composites, Plastics And Laminated Materials.

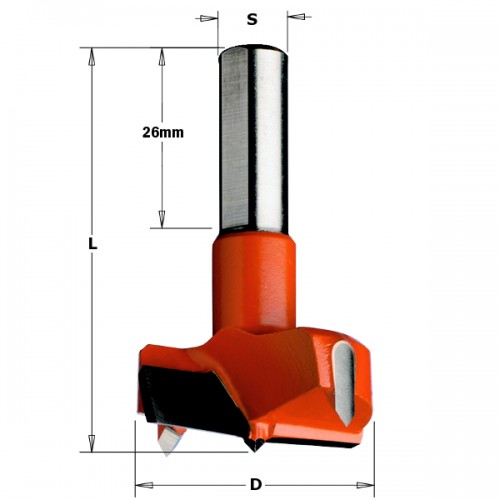

DIAMETER - MM OVERALL LENGTH - MM SHANK - MM TYPE SKU
DIAMETER - MM: 14 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.140.11
DIAMETER - MM: 14 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.140.12
DIAMETER - MM: 15 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.150.11
DIAMETER - MM: 15 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.150.12
DIAMETER - MM: 16 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.160.11
DIAMETER - MM: 16 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.160.12
DIAMETER - MM: 17 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.170.11
DIAMETER - MM: 17 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.170.12
DIAMETER - MM: 18 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.180.11
DIAMETER - MM: 18 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.180.12
DIAMETER - MM: 19 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.190.11
DIAMETER - MM: 19 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.190.12
DIAMETER - MM: 20 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.200.11
DIAMETER - MM: 20 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.200.12
DIAMETER - MM: 22 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.220.11
DIAMETER - MM: 22 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.220.12
DIAMETER - MM: 24 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.240.11
DIAMETER - MM: 24 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.240.12
DIAMETER - MM: 25 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.250.11
DIAMETER - MM: 25 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.250.12
DIAMETER - MM: 26 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.260.11
DIAMETER - MM: 26 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.260.12
DIAMETER - MM: 28 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.280.11
DIAMETER - MM: 28 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.280.12
DIAMETER - MM: 30 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.300.11
DIAMETER - MM: 30 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.300.12
DIAMETER - MM: 32 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.320.11
DIAMETER - MM: 32 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.320.12
DIAMETER - MM: 34 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.340.11
DIAMETER - MM: 34 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.340.12
DIAMETER - MM: 35 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.350.11
DIAMETER - MM: 35 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.350.12
DIAMETER - MM: 38 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.380.11
DIAMETER - MM: 38 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.380.12
DIAMETER - MM: 40 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.400.11
DIAMETER - MM: 40 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.400.12
DIAMETER - MM: 42 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.420.11
DIAMETER - MM: 42 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.420.12
DIAMETER - MM: 45 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.450.11
DIAMETER - MM: 45 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.450.12
DIAMETER - MM: 50 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.500.11
DIAMETER - MM: 50 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.500.12
DIAMETER - MM: 55 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.550.11
DIAMETER - MM: 55 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.550.12
DIAMETER - MM: 60 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: RIGHT-HAND ROTATION SKU: 317.600.11
DIAMETER - MM: 60 OVERALL LENGTH - MM: 57.5 SHANK - MM: 10x26 TYPE: LEFT-HAND ROTATION SKU: 317.600.12

TECHNICAL DETAILS:

- Super-Strength Steel.

- Cutter Portion Coated With Orange Or Black P.T.F.E.

- HW Head With Precision Balanced Centre Point.

- 2 HW Precision Ground Cutting Edges [Z2].

- 2 Negatively Ground Spurs [V2].

- Parallel Shank With Driving Flat And Length Adjusting Screw.

APPLICATION:

- Ideal For Hinges.

- Use On Boring Machines Equipped With Adaptors Or Chucks.

- Use For Drilling Accurate And Clean-Cut Blind Holes In Solid Wood, Wood Composites, Plastics And Laminated Materials.
