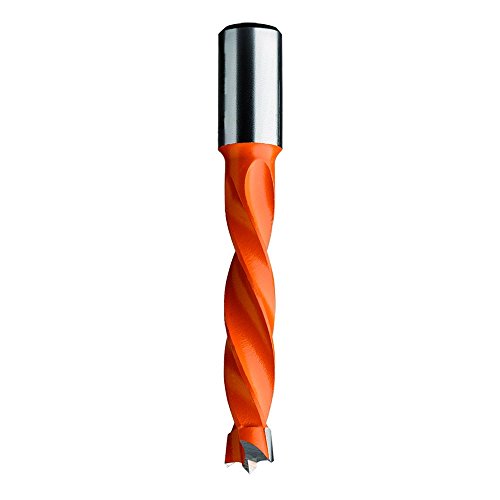

Series 309 - 4 Flute Dowel Drills

TECHNICAL DETAILS: - Super-Strength Steel. - Cutter Portion Coated With Black Or Orange P.T.F.E. - HW Head With Precision Balanced Centre Point. - 2 HW Precision Ground Cutting Edges [Z2]. - Negatively Ground Spurs [V2]. - 4 Spiral Flutes. - Parallel Shank With Driving Flat And Length Adjusting Screw. APPLICATION: - Used On Boring Machines Equipped With Adapters Or Chucks. - Used On Drill Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.

DIAMETER - MM	DRILL LENGTH - MM	OVERALL LENGTH - MM	SHANK - MM	TYPE	SKU
DIAMETER - MM: 4	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.040.11
DIAMETER - MM: 5	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.050.11
DIAMETER - MM: 6	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.060.11
DIAMETER - MM: 6.35	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.064.11
DIAMETER - MM: 7	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.070.11
DIAMETER - MM: 7.5	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.075.11
DIAMETER - MM: 8	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.080.11
DIAMETER - MM: 9	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.090.11
DIAMETER - MM: 9.52	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.095.11
DIAMETER - MM: 10	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.100.11
DIAMETER - MM: 11	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.110.11
DIAMETER - MM: 12	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.120.11
DIAMETER - MM: 12.7	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.127.11
DIAMETER - MM: 13	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.130.11
DIAMETER - MM: 14	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.140.11
DIAMETER - MM: 15	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.150.11
DIAMETER - MM: 16	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 309.160.11
DIAMETER - MM: 4	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.040.12
DIAMETER - MM: 5	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATIONLEFT-HAND ROTATION	SKU: 309.050.12
DIAMETER - MM: 6	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.060.12
DIAMETER - MM: 6.35	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.064.12
DIAMETER - MM: 7	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.070.12
DIAMETER - MM: 7.5	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.075.12
DIAMETER - MM: 8	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.080.12
DIAMETER - MM: 9	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.090.12
DIAMETER - MM: 9.52	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.095.12
DIAMETER - MM: 10	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.100.12
DIAMETER - MM: 11	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.110.12
DIAMETER - MM: 12	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.120.12
DIAMETER - MM: 12.7	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.127.12
DIAMETER - MM: 13	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.130.12
DIAMETER - MM: 14	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.140.12
DIAMETER - MM: 15	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.150.12
DIAMETER - MM: 16	DRILL LENGTH - MM: 43	OVERALL LENGTH - MM: 70	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 309.160.12

TECHNICAL DETAILS:

- Super-Strength Steel.

- Cutter Portion Coated With Black Or Orange P.T.F.E.

- HW Head With Precision Balanced Centre Point.

- 2 HW Precision Ground Cutting Edges [Z2].

- Negatively Ground Spurs [V2].

- 4 Spiral Flutes.

- Parallel Shank With Driving Flat And Length Adjusting Screw.

APPLICATION:

- Used On Boring Machines Equipped With Adapters Or Chucks.

- Used On Drill Blind Holes In Solid Wood, Wood Composites, Plastic And Laminated Materials.
