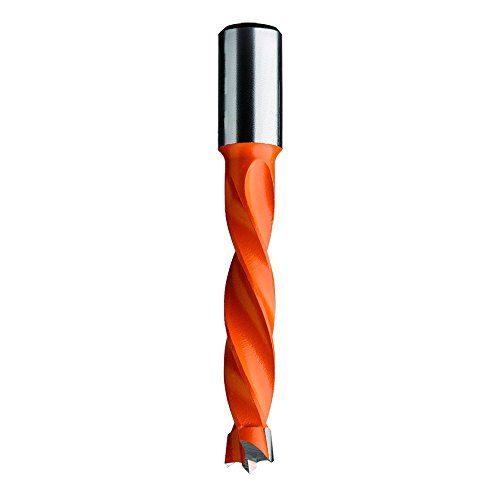

Series 308 - 4 Flute Dowel Drills

TECHNICAL DETAILS: -Super-strength steel. -Cutter portion coated with black or orange P.T.F.E. -HW head with precision balanced centre point. -2 HW precision ground cutting edges (Z2). -2 negatively ground spurs (V2). -4 spiral flutes. -Parallel shank with driving flat and length adjusting screw.

DIAMETER - MM	DRILL LENGTH - MM	OVERALL LENGTH - MM	SHANK - MM	TYPE	SKU
DIAMETER - MM: 4	DRILL LENGTH - MM: 26	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.040.11
DIAMETER - MM: 5	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.050.11
DIAMETER - MM: 6	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.060.11
DIAMETER - MM: 6.35	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.064.11
DIAMETER - MM: 7	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.070.11
DIAMETER - MM: 8	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.080.11
DIAMETER - MM: 9	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.090.11
DIAMETER - MM: 9.52	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.095.11
DIAMETER - MM: 10	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.100.11
DIAMETER - MM: 11	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.110.11
DIAMETER - MM: 12	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.120.11
DIAMETER - MM: 12.7	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.127.11
DIAMETER - MM: 13	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.130.11
DIAMETER - MM: 14	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.140.11
DIAMETER - MM: 15	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10X20	TYPE: RIGHT-HAND ROTATION	SKU: 308.150.11
DIAMETER - MM: 16	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: RIGHT-HAND ROTATION	SKU: 308.160.11
DIAMETER - MM: 4	DRILL LENGTH - MM: 26	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.040.12
DIAMETER - MM: 5	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.050.12
DIAMETER - MM: 6	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.060.12
DIAMETER - MM: 6.35	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.064.12
DIAMETER - MM: 7	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.070.12
DIAMETER - MM: 8	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.080.12
DIAMETER - MM: 9	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.090.12
DIAMETER - MM: 9.52	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.095.12
DIAMETER - MM: 10	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.100.12
DIAMETER - MM: 11	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.110.12
DIAMETER - MM: 12	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.120.12
DIAMETER - MM: 12.7	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.127.12
DIAMETER - MM: 13	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.130.12
DIAMETER - MM: 14	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.140.12
DIAMETER - MM: 15	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.150.12
DIAMETER - MM: 16	DRILL LENGTH - MM: 30	OVERALL LENGTH - MM: 57.5	SHANK - MM: 10x20	TYPE: LEFT-HAND ROTATION	SKU: 308.160.12

TECHNICAL DETAILS:

-Super-strength steel.

-Cutter portion coated with black or orange P.T.F.E.

-HW head with precision balanced centre point.

-2 HW precision ground cutting edges (Z2).

-2 negatively ground spurs (V2).

-4 spiral flutes.

-Parallel shank with driving flat and length adjusting screw.
