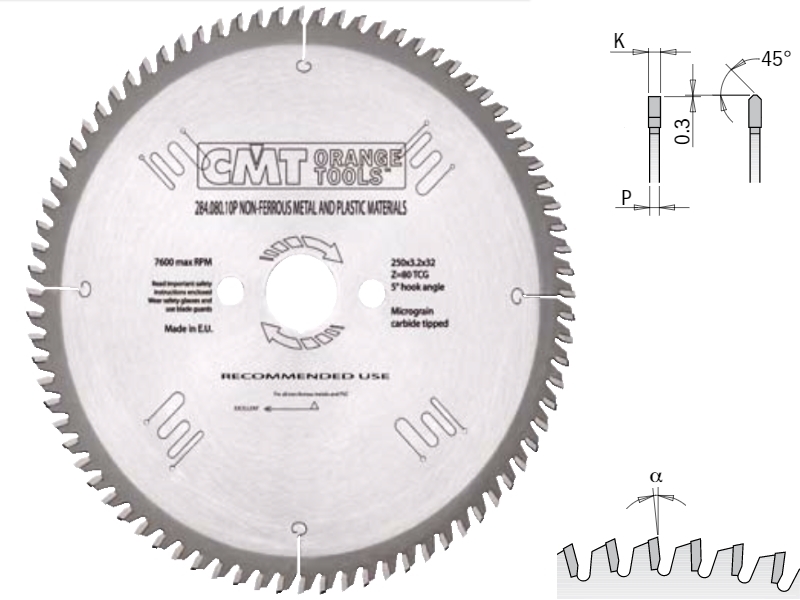

NON-FERROUS METAL & PLASTIC MATERIAL SAW BLADES (FOR PORTABLE MACHINES)

284 APPLICATION: For Cutting And Dividing Tubes, Wire Drawn Products And Solid Blocks. MACHINES: Table Saws, Single Or Double Mitre Saws With Mechanical Clamping Of The Workpiece. MATERIAL: Aluminium, Brass, Copper Alloys, Plastic, Composite Materials. WARNING: It Is Recommended To Properly Clamp The Workpiece During Cutting Operations And To Use A Liquid Lubricant. Wax Sticks Are NOT RECOMMENDED.

D - MM	BORE - MM	NO. OF TEETH	KERF - MM	HOOK ANGLE	TYPE OF GRIND	SKU
D - MM: 160	BORE - MM: 20	NO. OF TEETH: 24	KERF - MM: 2.2	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.160.24H
D - MM: 190	BORE - MM: 30	NO. OF TEETH: 30	KERF - MM: 2.6	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.190.30M
D - MM: 216	BORE - MM: 30	NO. OF TEETH: 40	KERF - MM: 2.6	HOOK ANGLE: 5Ã‚Â°	TYPE OF GRIND: TCG	SKU: 284.216.40M

284

APPLICATION: For Cutting And Dividing Tubes, Wire Drawn Products And Solid Blocks.

MACHINES: Table Saws, Single Or Double Mitre Saws With Mechanical Clamping Of The Workpiece.

MATERIAL: Aluminium, Brass, Copper Alloys, Plastic, Composite Materials.

WARNING: It Is Recommended To Properly Clamp The Workpiece During Cutting Operations And To Use A Liquid Lubricant. Wax Sticks Are NOT RECOMMENDED.
