ITK PLUS CROSSCUT SAW BLADES

272 APPLICATION: For Rip And Crosscuts At High-Speed Rotation. The Blade Considerably Reduces Material Waste Thanks To The Thin-Kerf Design. Particularly Suitable For Valuable Wood. MACHINES: Mitre Saws, Table Saws, Portable And Cordless Saws. MATERIAL: Soft And Hardwood, Plywood.
D - MM BORE - MM NO. OF TEETH KERF - MM HOOK ANGLE TYPE OF GRIND SKU

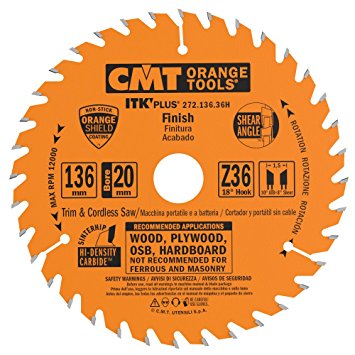

D - MM: 136 BORE - MM: 20 (+10) NO. OF TEETH: 36 KERF - MM: 1.5 HOOK ANGLE: 18° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.136.36H
D - MM: 150 BORE - MM: 20 (+16) NO. OF TEETH: 40 KERF - MM: 1.5 HOOK ANGLE: 16° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.150.40H
D - MM: 160 BORE - MM: 20 (+16) NO. OF TEETH: 40 KERF - MM: 1.7 HOOK ANGLE: 16° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.160.40H
D - MM: 165 BORE - MM: 20 (+15.87) NO. OF TEETH: 36 KERF - MM: 1.7 HOOK ANGLE: 20° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.165.36H
D - MM: 184 BORE - MM: 20 (+16+15.87) NO. OF TEETH: 40 KERF - MM: 1.7 HOOK ANGLE: 18° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.184.40H
D - MM: 184 BORE - MM: 30 NO. OF TEETH: 40 KERF - MM: 1.7 HOOK ANGLE: 18° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.184.40M
D - MM: 190 BORE - MM: 30 (+20+16) NO. OF TEETH: 42 KERF - MM: 1.7 HOOK ANGLE: 18° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.190.42M
D - MM: 200 BORE - MM: 30 NO. OF TEETH: 48 KERF - MM: 1.8 HOOK ANGLE: 15° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.200.48M
D - MM: 210 BORE - MM: 30 (+25) NO. OF TEETH: 48 KERF - MM: 1.8 HOOK ANGLE: 15° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.210.48M
D - MM: 216 BORE - MM: 30 NO. OF TEETH: 48 KERF - MM: 1.8 HOOK ANGLE: -5° NEG. TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.216.48M
D - MM: 235 BORE - MM: 30 (+25) NO. OF TEETH: 48 KERF - MM: 2.4 HOOK ANGLE: 18° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.235.48M
D - MM: 250 BORE - MM: 30 NO. OF TEETH: 60 KERF - MM: 2.4 HOOK ANGLE: 15° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.250.60M
D - MM: 300 BORE - MM: 30 NO. OF TEETH: 72 KERF - MM: 2.6 HOOK ANGLE: 15° TYPE OF GRIND: 10° ATB + 8° SHEAR SKU: 272.300.72M

272

APPLICATION: For Rip And Crosscuts At High-Speed Rotation. The Blade Considerably Reduces Material Waste Thanks To The Thin-Kerf Design. Particularly Suitable For Valuable Wood.

MACHINES: Mitre Saws, Table Saws, Portable And Cordless Saws.

MATERIAL: Soft And Hardwood, Plywood.
