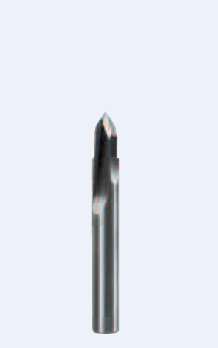

FS Tool V-Point Solid Carbide Router Bits

D E S I G N : • Good to Excellent surface finish is produced by the 2 precision ground cutting edges • Good chipflow is provided by the 2 flute low upshear design with steep back clearances • Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up A P P L I C AT I O N : • For smooth finishing V-Groove or Bevel cuts • Good finish on hardwoods, softwoods, composite materials, solid surface and plastic materials • For improved dust extraction, use with an Aerotech (page FC21)   FOR A PRICE,...
Tip Angle Cutting Diameter Flute Length Shank Diameter No. Flutes Overall Length SKU
Tip Angle: 60º Cutting Diameter: 1/4" Flute Length: 7/8" Shank Diameter: 1/4" No. Flutes: 2 Overall Length: 3" SKU: RSFV6014/78
Tip Angle: 60º Cutting Diameter: 3/8" Flute Length: 1" Shank Diameter: 3/8" No. Flutes: 2 Overall Length: 3" SKU: RSFV6038/1
Tip Angle: 60º Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: RSFV6012/114
Tip Angle: 90º Cutting Diameter: 1/4" Flute Length: 7/8" Shank Diameter: 1/4" No. Flutes: 2 Overall Length: 3" SKU: RSFV9014/78
Tip Angle: 90º Cutting Diameter: 3/8" Flute Length: 1" Shank Diameter: 3/8" No. Flutes: 2 Overall Length: 3" SKU: RSFV9038/1
Tip Angle: 90º Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diameter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: RSFV9012/114

D E S I G N :


• Good to Excellent surface finish is produced by the 2
precision ground cutting edges
• Good chipflow is provided by the 2 flute low upshear
design with steep back clearances
• Submicron, corrosion resistant, extended life carbide
provides increased durability and resistance to resin
build-up


A P P L I C AT I O N :


• For smooth finishing V-Groove or Bevel cuts
• Good finish on hardwoods, softwoods, composite
materials, solid surface and plastic materials
• For improved dust extraction, use with an
Aerotech (page FC21)



FOR A PRICE, RING 01204 701000 !!
