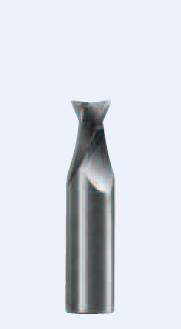

FS Tool Spiral 10 Degree Dovetail Router Bits, Z=2 (Downcut)

A P P L I C AT I O N : • For exceptionally smooth finishing cuts • Significantly increased tool life and cut quaility compared to a brazed dovetail router bits • Downcut spiral provides a smooth finish along the top edge D E S I G N : • Excellent chipflow and lower heat retention is provided by the 2 spiral flute design • Special submicron, corrosion resistant, extended life carbide provides increased cutting edge durability and resistance to resin build-up when cutting solid wood and materials of inconsistent density WHEN ORDERING S P E C I F...

Dovetail Angle	Cutting Diameter	Dovetail Length	Shank Diameter	No. Flutes	Overall Length	SKU
Dovetail Angle: 10Ã‚Âº	Cutting Diameter: 1/2"	Dovetail Length: 0.625"	Shank Diameter: 14mm	No. Flutes: 2	Overall Length: 2-1/2"	SKU: RSFD1012/625-D2
Dovetail Angle: 10Ã‚Âº	Cutting Diameter: 14mm	Dovetail Length: 0.450"	Shank Diameter: 14mm	No. Flutes: 2	Overall Length: 60mm	SKU: RSFDM1014/450-D2L

A P P L I C AT I O N :

• For exceptionally smooth finishing cuts
• Significantly increased tool life and cut quaility compared to a brazed
dovetail router bits
• Downcut spiral provides a smooth finish along the top edge

D E S I G N :

• Excellent chipflow and lower heat retention is
provided by the 2 spiral flute design
• Special submicron, corrosion resistant,
extended life carbide provides increased cutting
edge durability and resistance to resin build-up
when cutting solid wood and materials of
inconsistent density
WHEN ORDERING S P E C I F Y:
• Specify if flat is required on shank, for more
information see photo on page FC64
• If your machines has an Eccentric Spindle,
router bits will be custom manufactured

FOR A PRICE, RING 01204 701000 !!
