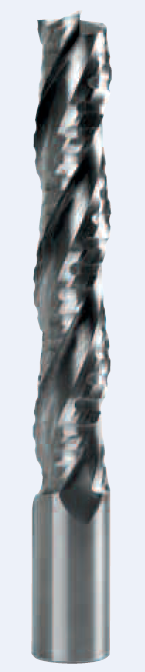

D E S I G N :
• Special secondary chamfered clearance improves chipflow
• Unique scalloped cutting edges produce a clean cut and extend tool life
• Knuckles reduce cutting pressure by creating multiple cuts or chips along a single cutting edge
• Faster feed rates at lower spindle speeds in hard materials are possible due to the 3 precision
ground scalloped cutting edges
• Special submicron, corrosion resistant, extended life carbide provides increased cutting edge
durability and resistance to resin build-up when cutting solid wood and materials of inconsistent
density
• 30º Helix design with plunging capability, also available in Low Helix designs
• [RSCH2046-U3] Upcut spiral provides excellent chip ejection from the cutting path
• [RSCH2046-D3] Downward cutting action helps hold down material
A P P L I C AT I O N :
• Recommended for Entry Doors, Stairways and other deep cuts in hard materials
• 3 flute design allows for two cutting edges to be engaged at all times, providing greater
stability and reducing run-out
