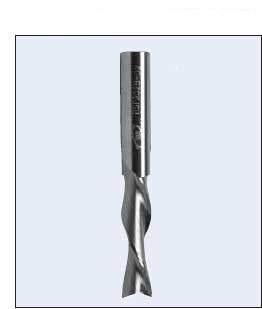

FS Tool Finishing Upcut, 2 Flute

DESIGN: - Excellent surface finish is produced by the 2 precision ground cutting edges. - Better chipflow and lower heat retention are provided by the 2 flute design. - Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up. - 30º Helix design with plunging capability. APPLICATION: - Commonly used for rebates, dadoes/grooving and pocketing operations on raw panels, one side laminated with face down or solid wood. - Excellent finish on hardwoods, softwoods, laminated panels, MDF, chipboard, plywood and solid surface materials. - Increased cutting edge life when frequently accelerating/decelerating or performing multiple passes such as "Onion...

Cutting Diameter.	Flute Length	Shank Diameter	No. Of Flutes	Overall Length	SKU
Cutting Diameter.: 3mm	Flute Length: 12mm	Shank Diameter: 3mm	No. Of Flutes: 2	Overall Length: 50mm	SKU: RSFM03012-U2
Cutting Diameter.: 1/8"	Flute Length: 1/2"	Shank Diameter: 1/8"	No. Of Flutes: 2	Overall Length: 2"	SKU: RSF2000A-U2
Cutting Diameter.: 1/8"	Flute Length: 1/2"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2"	SKU: RSF2000-U2
Cutting Diameter.: 5/32"	Flute Length: 1/2"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2"	SKU: RSF2002-U2
Cutting Diameter.: 4mm	Flute Length: 12mm	Shank Diameter: 4mm	No. Of Flutes: 2	Overall Length: 50mm	SKU: RSFM04012-U2
Cutting Diameter.: 3/16"	Flute Length: 3/4"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2"	SKU: RSF2004-U2
Cutting Diameter.: 3/16"	Flute Length: 3/4"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2005-U2
Cutting Diameter.: 5mm	Flute Length: 17mm	Shank Diameter: 5mm	No. Of Flutes: 2	Overall Length: 50mm	SKU: RSFM05017-U2
Cutting Diameter.: 6mm	Flute Length: 27mm	Shank Diameter: 6mm	No. Of Flutes: 2	Overall Length: 60mm	SKU: RSFM06027-U2
Cutting Diameter.: 1/4"	Flute Length: 3/4"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2006-U2
Cutting Diameter.: 1/4"	Flute Length: 1"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2008-U2
Cutting Diameter.: 1/4"	Flute Length: 1"	Shank Diameter: 1/4"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2009-U2
Cutting Diameter.: 5/16"	Flute Length: 1"	Shank Diameter: 5/16"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2010-U2
Cutting Diameter.: 8mm	Flute Length: 35mm	Shank Diameter: 8mm	No. Of Flutes: 2	Overall Length: 80mm	SKU: RSFM08035-U2
Cutting Diameter.: 3/8"	Flute Length: 3/4"	Shank Diameter: 3/8"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2012-U2
Cutting Diameter.: 3/8"	Flute Length: 1"	Shank Diameter: 3/8"	No. Of Flutes: 2	Overall Length: 2-1/2"	SKU: RSF2014-U2
Cutting Diameter.: 3/8"	Flute Length: 1-1/4"	Shank Diameter: 3/8"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2015-U2
Cutting Diameter.: 3/8"	Flute Length: 1-1/4"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2016-U2
Cutting Diameter.: 10mm	Flute Length: 35mm	Shank Diameter: 10mm	No. Of Flutes: 2	Overall Length: 80mm	SKU: RSFM10035-U2
Cutting Diameter.: 12mm	Flute Length: 35mm	Shank Diameter: 12mm	No. Of Flutes: 2	Overall Length: 80mm	SKU: RSFM12035-U2
Cutting Diameter.: 1/2"	Flute Length: 5/8"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2019S-U2
Cutting Diameter.: 1/2"	Flute Length: 7/8"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2020S-U2
Cutting Diameter.: 1/2"	Flute Length: 1-1/4"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 3"	SKU: RSF2020-U2
Cutting Diameter.: 1/2"	Flute Length: 1-1/2"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 3-1/2"	SKU: RSF2024-U2
Cutting Diameter.: 1/2"	Flute Length: 2"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 4"	SKU: RSF2028-U2
Cutting Diameter.: 1/2"	Flute Length: 2-1/4"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 4-1/2"	SKU: RSF2032-U2
Cutting Diameter.: 1/2"	Flute Length: 2-1/2"	Shank Diameter: 1/2"	No. Of Flutes: 2	Overall Length: 5-1/2"	SKU: RSF2034-U2
Cutting Diameter.: 14mm	Flute Length: 55mm	Shank Diameter: 14mm	No. Of Flutes: 2	Overall Length: 100mm	SKU: RSFM14055-U2
Cutting Diameter.: 5/8"	Flute Length: 1-1/2"	Shank Diameter: 5/8"	No. Of Flutes: 2	Overall Length: 4"	SKU: RSF2036-U2
Cutting Diameter.: 5/8"	Flute Length: 2"	Shank Diameter: 5/8"	No. Of Flutes: 2	Overall Length: 4"	SKU: RSF2038-U2
Cutting Diameter.: 16mm	Flute Length: 55mm	Shank Diameter: 16mm	No. Of Flutes: 2	Overall Length: 100mm	SKU: RSFM16055-U2
Cutting Diameter.: 18mm	Flute Length: 55mm	Shank Diameter: 18mm	No. Of Flutes: 2	Overall Length: 100mm	SKU: RSFM18055-U2
Cutting Diameter.: 3/4"	Flute Length: 1-1/2"	Shank Diameter: 3/4"	No. Of Flutes: 2	Overall Length: 4"	SKU: RSF2042-U2
Cutting Diameter.: 3/4"	Flute Length: 2"	Shank Diameter: 3/4"	No. Of Flutes: 2	Overall Length: 4"	SKU: RSF2044-U2
Cutting Diameter.: 3/4"	Flute Length: 2-1/2"	Shank Diameter: 3/4"	No. Of Flutes: 2	Overall Length: 5"	SKU: RSF2048-U2
Cutting Diameter.: 20mm	Flute Length: 55mm	Shank Diameter: 20mm	No. Of Flutes: 2	Overall Length: 100mm	SKU: RSFM20055-U2

DESIGN:

- Excellent surface finish is produced by the 2 precision ground cutting edges.

- Better chipflow and lower heat retention are provided by the 2 flute design.

- Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up.

- 30º Helix design with plunging capability.

APPLICATION:

- Commonly used for rebates, dadoes/grooving and pocketing operations on raw panels, one side laminated with face down or solid wood.

- Excellent finish on hardwoods, softwoods, laminated panels, MDF, chipboard, plywood and solid surface materials.

- Increased cutting edge life when frequently accelerating/decelerating or performing multiple passes such as "Onion Skining".

- Eliminates chipping, fuzzing and tear out along the bottom of the board.

- Upcut spiral improves chip ejection from the cutting path.

- For improved dust extraction use with an Aerotech (Page FC21)

More Info

FOR A PRICE, RING 01204 701000 !!
