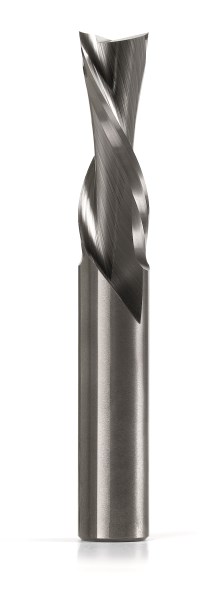

DESIGN:
- Excellent surface finish is produced by the 2 precision ground cutting edges.
- Excellent chipflow and lower heat retention are provided by the 2 flute design.
- Fast feed rates are possible due to the high performance tool geometry.
- Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up.
- 30º Helix design with plunging capability.
APPLICATION:
- For smooth finishing cuts.
- Excellent finish on hardwoods, softwoods, laminated panels, MDF, chipboard, plywood, & solid surface materials.
- Increased cutting edge life when frequently accelerating/decelerating or performing multiple passes such as "Onion Skinning".
- Eliminates chipping, fuzzing & tear-out when the end of the upcut/downcut cutting edges are further than 1/16" from the top and bottom faces of the board.
- Use a "Mortise" upcut length of 0.188" when cutting rebates, dados or pockets.
- If part movement is a concern, use a "Mortise" upcut length of 0.188".
- When possible select a router bit with a longer upcut length to improve chip ejection from the cutting path.
- For improved dust extraction use with an Aerotech. (Page FC21)
FOR A PRICE, RING 01204 701000 !!
