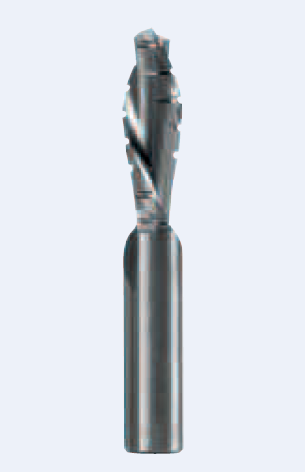

FS Tool Chipbreaker Downcut, Z=2

D E S I G N : • Good surface finish is produced by the 2 precision ground cutting edges with Chipbreakers • Chipbreakers reduce cutting pressure and noise levels • Excellent chipflow and lower heat retention are provided by the 2 flute design with Chipbreakers • Submicron, corrosion resistant, extended life carbide provides increased durability and resistance to resin build-up • 30º Helix design with plunging capability A P P L I C AT I O N : • Chipbreakers reduce the size of chips and improve chipflow, allowing for higher feed rates and tool life in plywood, chipboard...
Cutting Diameter Flute Length Shank Diamteter No. Flutes Overall Length SKU
Cutting Diameter: 3/8" Flute Length: 1-1/4" Shank Diamteter: 3/8" No. Flutes: 2 Overall Length: 3" SKU: RSC2116-D2
Cutting Diameter: 1/2" Flute Length: 1-1/4" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3" SKU: RSC2120-D2
Cutting Diameter: 1/2" Flute Length: 1-5/8" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 3-1/2" SKU: RSC2124-D2
Cutting Diameter: 1/2" Flute Length: 2-1/8" Shank Diamteter: 1/2" No. Flutes: 2 Overall Length: 4" SKU: RSC2130-D2
Cutting Diameter: 5/8" Flute Length: 2-1/4" Shank Diamteter: 5/8" No. Flutes: 2 Overall Length: 4" SKU: RSC2138-D2
Cutting Diameter: 3/4" Flute Length: 2-1/4" Shank Diamteter: 3/4" No. Flutes: 2 Overall Length: 4" SKU: RSC2144-D2

D E S I G N :


• Good surface finish is produced by the 2 precision
ground cutting edges with Chipbreakers
• Chipbreakers reduce cutting pressure and noise levels
• Excellent chipflow and lower heat retention are
provided by the 2 flute design with Chipbreakers
• Submicron, corrosion resistant, extended life carbide
provides increased durability and resistance to resin
build-up
• 30º Helix design with plunging capability


A P P L I C AT I O N :


• Chipbreakers reduce the size of chips and improve
chipflow, allowing for higher feed rates and tool life in
plywood, chipboard and solid wood
• Chipbreakers reduce tear-out in plywood,
solid wood and loose core materials
• Good finish on hardwoods, softwoods, chipboard
and plywood materials
• Commonly used for rebates, dadoes/grooving and
pocketing operations on raw panels, plywood and
solid wood
• Increased cutting edge life when frequently
accelerating/decelerating or performing multiple
passes such as “Onion skinning”
• Reduces fuzzing and tear-out along the top face of
the board
• Downward cutting action helps hold down material
• For improved dust extraction use with an
Aerotech (page FC21)



FOR A PRICE, RING 01204 701000 !!
