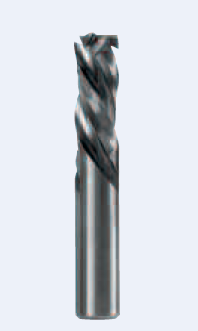

D E S I G N :
• Tool design is optimized for highspeed cutting with the Aerotech System
• Superior surface finish is produced by the 3 precision ground cutting edges
• Good chipflow and lower heat retention are provided by the 3 flute design
• Faster feed rates at low spindle speeds are possible due to the high performance
tool geometry
• Submicron, corrosion resistant, extended life carbide provides increased durability and
resistance to resin build-up
• 30º Helix design with plunging capability
A P P L I C AT I O N :
• For exceptionally smooth finishing cuts
• Superior finish on hardwoods, softwoods, laminated panels, MDF, chipboard,
plywood and solid surface materials
• 3 flute design allows for two cutting edges to be engaged at all times, providing
greater stability and reducing run-out
• Increased number of bite marks per inch reduces chip size and provides a
smooth finish on the core of plywood and particleboards, especially important
when edge-banding without pre-miling operations
• Eliminates chipping, fuzzing and tear-out when the end of the upcut/downcut
cutting edges are further than 1/16" from the top and bottom faces of the
board
• This upcut length will prevent tear-out when cutting rebates, dados or pockets with
a depth of 0.250" or greater
• If part movement is a concern, using this design may assist material hold down
IMPORTANT:
Dust (Chips) must remain
moderately loose and unpacked in
the cut for the Aerotech Universal
to provide maximum dust
extraction. Typically packed dust is
caused by the downshear cutting
action. Material type and condition,
operating environment and cutting
path pattern have an impact as to
how densely dust will become
packed within the cut.
To overcome packed dust, decrease
the amount of downshear within the
cut. This can be accomplished by
selecting a High Upcut design (see
next page for tooling options),
reducing the depth of cut per pass
and/or performing multiple passes.
