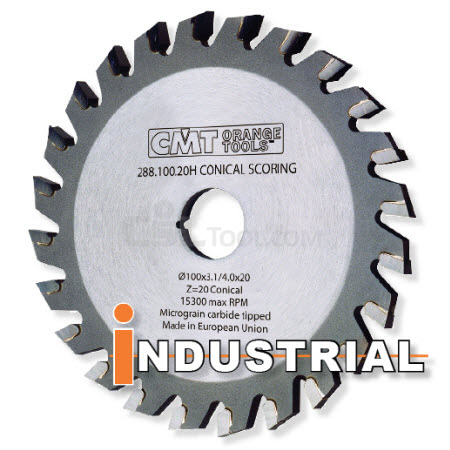

CONICAL SCORING BLADES

288 APPLICATION: For Chip-Free Scoring Plastic-Laminated Panels. MACHINES: Horizontal And Vertical Sizing Machines Equipped With Scoring Device For Vertical Adjustment. MATERIAL: Single Or Double-Sided Plastic-Laminated Panels, MDF.
D - MM BORE - MM NO. OF TEETH KERF - MM HOOK ANGLE TYPE OF GRIND SKU
D - MM: 80 BORE - MM: 20 NO. OF TEETH: 12 KERF - MM: 3.1-4.0 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: S288.080.12H
D - MM: 100 BORE - MM: 20 NO. OF TEETH: 20 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.100.20H
D - MM: 100 BORE - MM: 22 NO. OF TEETH: 20 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.100.20K
D - MM: 120 BORE - MM: 20 NO. OF TEETH: 24 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.120.24H
D - MM: 120 BORE - MM: 20 NO. OF TEETH: 24 KERF - MM: 3.4-4.2 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.120.24H1
D - MM: 120 BORE - MM: 22 NO. OF TEETH: 24 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.120.24K
D - MM: 125 BORE - MM: 20 NO. OF TEETH: 24 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.125.24H
D - MM: 125 BORE - MM: 20 NO. OF TEETH: 24 KERF - MM: 3.4-4.2 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.125.24H1
D - MM: 125 BORE - MM: 20 NO. OF TEETH: 24 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.125.24H2
D - MM: 125 BORE - MM: 22 NO. OF TEETH: 24 KERF - MM: 3.1-4.0 HOOK ANGLE: 5° TYPE OF GRIND: CO+5º ATB SKU: 288.125.24K
D - MM: 125 BORE - MM: 45 NO. OF TEETH: 24 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.125.24Q
D - MM: 140 BORE - MM: 16 NO. OF TEETH: 24 KERF - MM: 3.1-4.0 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: Y288.140.24E
D - MM: 150 BORE - MM: 45 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.150.36Q
D - MM: 160 BORE - MM: 45 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.160.36Q
D - MM: 160 BORE - MM: 55 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.160.36O
D - MM: 160 BORE - MM: 55 NO. OF TEETH: 36 KERF - MM: 4.7-6.0 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: Y288.160.36O2
D - MM: 180 BORE - MM: 20 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: Y288.180.36H
D - MM: 180 BORE - MM: 30 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.180.36M
D - MM: 180 BORE - MM: 45 NO. OF TEETH: 36 KERF - MM: 4.7-6.0 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.180.36Q
D - MM: 180 BORE - MM: 55 NO. OF TEETH: 36 KERF - MM: 5.0-6.2 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.180.36O
D - MM: 180 BORE - MM: 50 NO. OF TEETH: 44 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.180.44T
D - MM: 200 BORE - MM: 20 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.200.36H
D - MM: 200 BORE - MM: 45 NO. OF TEETH: 36 KERF - MM: 4.7-6.0 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.200.36Q
D - MM: 200 BORE - MM: 45 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: Y288.200.36Q2
D - MM: 200 BORE - MM: 65 NO. OF TEETH: 36 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.200.36J
D - MM: 215 BORE - MM: 50 NO. OF TEETH: 42 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.215.42T
D - MM: 300 BORE - MM: 50 NO. OF TEETH: 48 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.300.48T
D - MM: 300 BORE - MM: 65 NO. OF TEETH: 72 KERF - MM: 4.3-5.5 HOOK ANGLE: 10° TYPE OF GRIND: CO+FTG SKU: 288.300.72J

288

APPLICATION: For Chip-Free Scoring Plastic-Laminated Panels.

MACHINES: Horizontal And Vertical Sizing Machines Equipped With Scoring Device For Vertical Adjustment.

MATERIAL: Single Or Double-Sided Plastic-Laminated Panels, MDF.
